신규 고도화 사업을 진행하게되어 기존 소스를 받았는데, 구조가 뭔가 이상하다.
분명히 전자정부프레임워크라고 했는데, egov관련된 정보는 어디에도 안보이고 pom.xml부터 에러가 발생한다.
pom.xml에 parent라는 태그가 보인다.
찾아보니 메이븐을 부모, 자식형태로 구성해서 공통화를 할 수 있다고 한다.
오... 같은 프로젝트에 공통으로 쓰는 라이브러리가 많을때 쓰면 좋을 것 같다. (근데 전자정부인데 이렇게 마음대로 구조를 나눠도 되나...?😨)
pom.xml parent, modules구조로 나누기
먼저 조상(부모)가 될 프로젝트를 구성한다. (egov기준으로 예시를 작성하겠습니다.)
해당 프로젝트에선 딱히 뭔가를 만들지 않고, pom.xml만 작성한다.
Parent Project

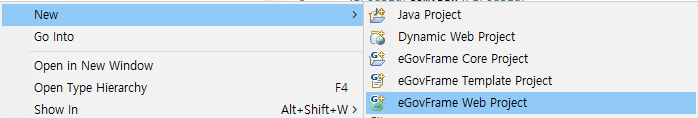

1. 신규 프로젝트 생성

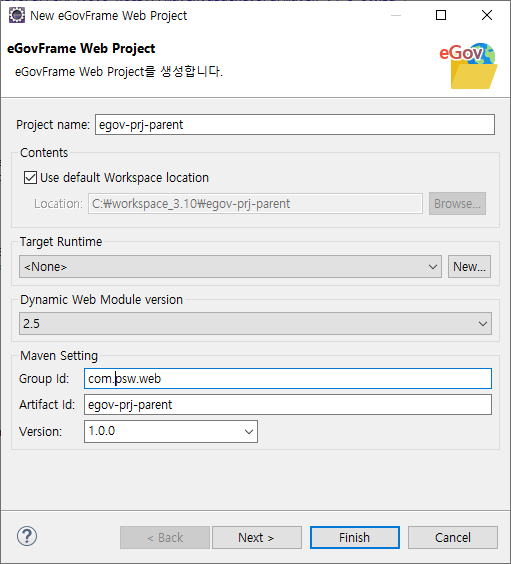

2. Project name, Group id를 작성한다.

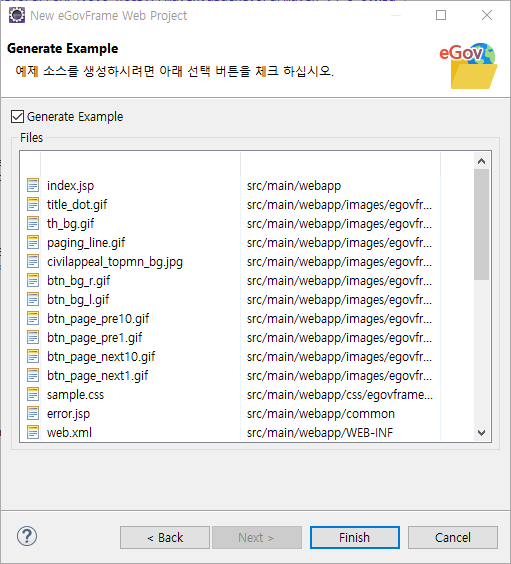

3. egov구조 sample데이터도 전부 체크해준다.

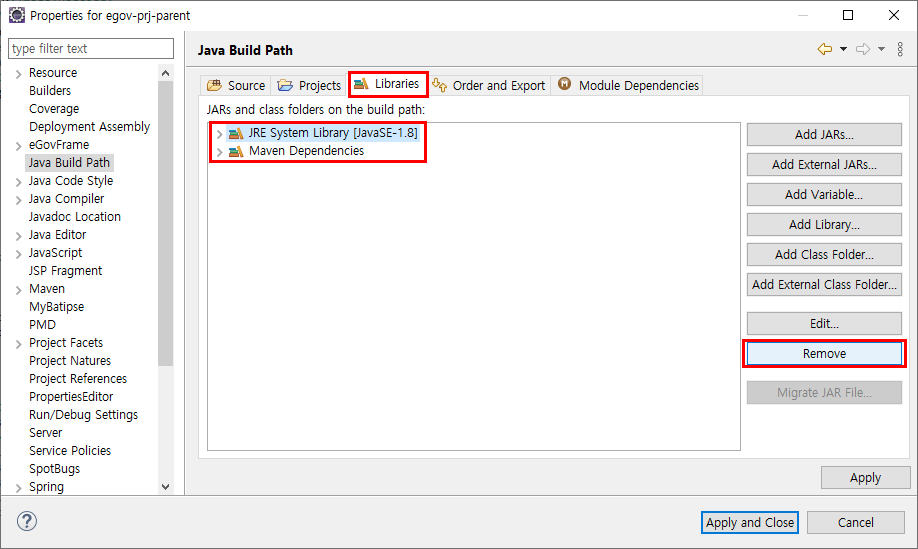

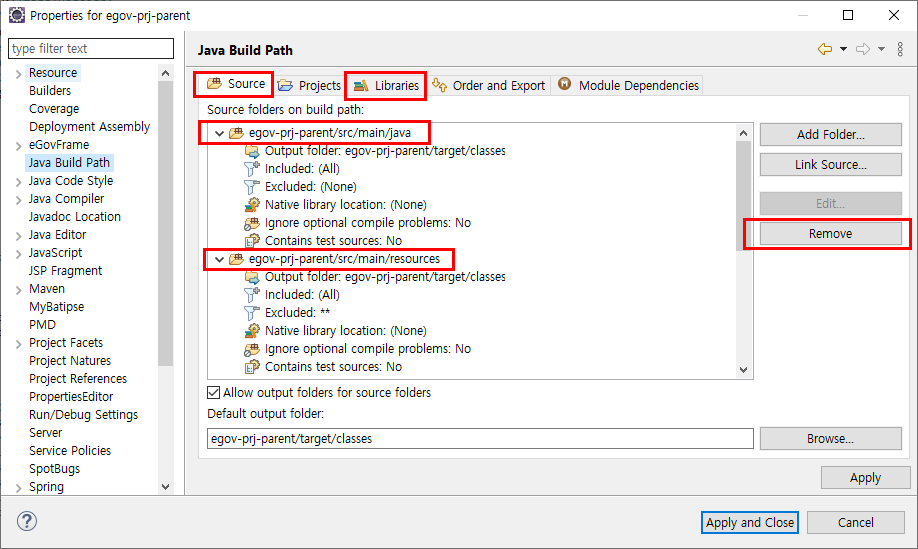

4. 프로젝트가 생성되면 프로젝트 우클릭 > Properties > Java Build Path로 갑니다.
각 항목들을 모두 제거해서 프로젝트를 비워줍니다.

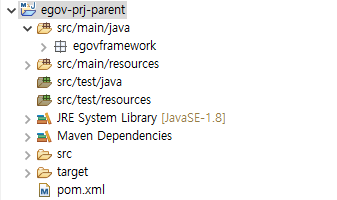

제거하면 다 사라지고 껍데기만 남는데 필요없는 src폴더까지 지워줍니다.
5. pom.xml을 수정합니다.
pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.psw</groupId>
<artifactId>egov-prj-parent</artifactId>
<version>1.0.0</version>
<packaging>pom</packaging>
<name>egov-prj-parent</name>
<url>http://www.egovframe.go.kr</url>
<licenses>
<license>
<name>The Apache Software License, Version 2.0</name>
<url>http://www.apache.org/licenses/LICENSE-2.0.txt</url>
</license>
</licenses>
<properties>
<spring.maven.artifact.version>4.3.25.RELEASE</spring.maven.artifact.version>
<egovframework.rte.version>3.10.0</egovframework.rte.version>
</properties>
<modules>
<module>egov-prj-child1</module>
<module>egov-prj-child2</module>
</modules>
<repositories>
<repository>
<id>mvn2s</id>
<url>https://repo1.maven.org/maven2/</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>true</enabled>
</snapshots>
</repository>
<repository>
<id>egovframe</id>
<url>http://maven.egovframe.go.kr/maven</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>false</enabled>
</snapshots>
</repository>
<repository>
<id>egovframe_old1</id>
<url>http://maven.egovframe.kr:8080/maven/</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>false</enabled>
</snapshots>
</repository>
<repository>
<id>egovframe_old2</id>
<url>http://www.egovframe.go.kr/maven/</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>false</enabled>
</snapshots>
</repository>
</repositories>
<dependencies>
<!-- 표준프레임워크 실행환경 -->
<dependency>
<groupId>egovframework.rte</groupId>
<artifactId>egovframework.rte.ptl.mvc</artifactId>
<version>${egovframework.rte.version}</version>
<exclusions>
<exclusion>
<artifactId>commons-logging</artifactId>
<groupId>commons-logging</groupId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>egovframework.rte</groupId>
<artifactId>egovframework.rte.psl.dataaccess</artifactId>
<version>${egovframework.rte.version}</version>
</dependency>
<dependency>
<groupId>egovframework.rte</groupId>
<artifactId>egovframework.rte.fdl.idgnr</artifactId>
<version>${egovframework.rte.version}</version>
</dependency>
<dependency>
<groupId>egovframework.rte</groupId>
<artifactId>egovframework.rte.fdl.property</artifactId>
<version>${egovframework.rte.version}</version>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>servlet-api</artifactId>
<version>2.5</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>jstl</artifactId>
<version>1.2</version>
</dependency>
<dependency>
<groupId>taglibs</groupId>
<artifactId>standard</artifactId>
<version>1.1.2</version>
</dependency>
<dependency>
<groupId>org.antlr</groupId>
<artifactId>antlr</artifactId>
<version>3.5</version>
</dependency>
<dependency>
<groupId>org.hsqldb</groupId>
<artifactId>hsqldb</artifactId>
<version>2.5.0</version>
</dependency>
<dependency>
<groupId>commons-io</groupId>
<artifactId>commons-io</artifactId>
<version>2.6</version>
</dependency>
<dependency>
<groupId>org.apache.tiles</groupId>
<artifactId>tiles-jsp</artifactId>
<version>3.0.8</version>
</dependency>
</dependencies>
<build>
<defaultGoal>install</defaultGoal>
<directory>${basedir}/target</directory>
<finalName>${artifactId}-${version}</finalName>
<pluginManagement>
<plugins>
<plugin>
<groupId>org.apache.tomcat.maven</groupId>
<artifactId>tomcat7-maven-plugin</artifactId>
<version>2.2</version>
<configuration>
<port>80</port>
<path>/</path>
<systemProperties>
<JAVA_OPTS>-Xms256m -Xmx768m -XX:MaxPermSize=256m</JAVA_OPTS>
</systemProperties>
</configuration>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.1</version>
<configuration>
<source>1.8</source>
<target>1.8</target>
<encoding>UTF-8</encoding>
<maxmem>1024m</maxmem>
</configuration>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-war-plugin</artifactId>
<version>2.4</version>
<configuration>
<failOnMissingWebXml>false</failOnMissingWebXml>
</configuration>
</plugin>
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>hibernate3-maven-plugin</artifactId>
<version>3.0</version>
<configuration>
<components>
<component>
<name>hbm2ddl</name>
<implementation>annotationconfiguration</implementation>
</component>
</components>
</configuration>
<dependencies>
<dependency>
<groupId>org.hsqldb</groupId>
<artifactId>hsqldb</artifactId>
<version>2.5.0</version>
</dependency>
</dependencies>
</plugin>
<!-- EMMA -->
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>emma-maven-plugin</artifactId>
<version>1.0-alpha-3</version>
</plugin>
<!-- PMD manven plugin -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-pmd-plugin</artifactId>
<version>3.12.0</version>
</plugin>
</plugins>
</pluginManagement>
<plugins>
<!-- EMMA -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-surefire-plugin</artifactId>
<configuration>
<skipTests>true</skipTests>
<forkMode>once</forkMode>
<reportFormat>xml</reportFormat>
<excludes>
<exclude>**/Abstract*.java</exclude>
<exclude>**/*Suite.java</exclude>
</excludes>
<includes>
<include>**/*Test.java</include>
</includes>
</configuration>
</plugin>
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>emma-maven-plugin</artifactId>
<inherited>true</inherited>
</plugin>
<!-- JavaDoc -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-javadoc-plugin</artifactId>
<version>3.1.1</version>
</plugin>
</plugins>
</build>
<reporting>
<outputDirectory>${basedir}/target/site</outputDirectory>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-project-info-reports-plugin</artifactId>
<version>3.0.0</version>
<reportSets>
<reportSet>
<id>sunlink</id>
<reports>
<report>javadoc</report>
</reports>
<inherited>true</inherited>
<configuration>
<links>
<link>http://docs.oracle.com/javase/6/docs/api/</link>
</links>
</configuration>
</reportSet>
</reportSets>
</plugin>
<!-- JUnit Test Results & EMMA Coverage Reporting -->
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>emma-maven-plugin</artifactId>
<inherited>true</inherited>
</plugin>
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>surefire-report-maven-plugin</artifactId>
<inherited>true</inherited>
<reportSets>
<reportSet>
<reports>
<report>report-only</report>
</reports>
</reportSet>
</reportSets>
</plugin>
<!-- Generating JavaDoc Report -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-javadoc-plugin</artifactId>
<configuration>
<minmemory>128m</minmemory>
<maxmemory>512m</maxmemory>
<encoding>${encoding}</encoding>
<docencoding>${encoding}</docencoding>
<charset>${encoding}</charset>
</configuration>
</plugin>
<!-- Generating Java Source in HTML -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-jxr-plugin</artifactId>
<configuration>
<inputEncoding>${encoding}</inputEncoding>
<outputEncoding>${encoding}</outputEncoding>
<linkJavadoc>true</linkJavadoc>
<javadocDir>apidocs</javadocDir>
</configuration>
</plugin>
</plugins>
</reporting>
</project>너무나도 기네요...
공통으로 사용할 메이븐은 parent에 넣고 사용할 예정이고 여기서 테스트를 위해 tiles만 추가해두겠습니다.
modules부분에서 하위 프로젝트를 지정합니다.

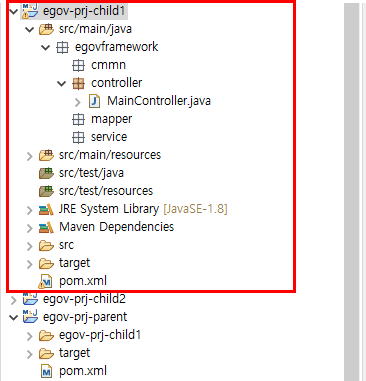

Child1 Project
1. child1 프로젝트 생성하기
2. egov 프로젝트를 생성하고 pom.xml을 바로 수정합니다.
(설정이나 삭제 과정은 없습니다.)
pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>com.psw</groupId>
<artifactId>egov-prj-parent</artifactId>
<version>1.0.0</version>
</parent>
<artifactId>egov-prj-child1</artifactId>
<packaging>war</packaging>
<version>1.0.0</version>
<name>egov-prj-child1</name>
<url>http://www.egovframe.go.kr</url>
<licenses>
<license>
<name>The Apache Software License, Version 2.0</name>
<url>http://www.apache.org/licenses/LICENSE-2.0.txt</url>
</license>
</licenses>

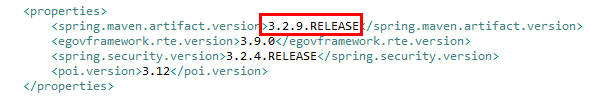

<properties>
<spring.maven.artifact.version>4.3.25.RELEASE</spring.maven.artifact.version>
<egovframework.rte.version>3.10.0</egovframework.rte.version>
</properties>
<repositories>
<repository>
<id>mvn2s</id>
<url>https://repo1.maven.org/maven2/</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>true</enabled>
</snapshots>
</repository>
<repository>
<id>egovframe</id>
<url>http://maven.egovframe.go.kr/maven</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>false</enabled>
</snapshots>
</repository>
<repository>
<id>egovframe_old1</id>
<url>http://maven.egovframe.kr:8080/maven/</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>false</enabled>
</snapshots>
</repository>
<repository>
<id>egovframe_old2</id>
<url>http://www.egovframe.go.kr/maven/</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>false</enabled>
</snapshots>
</repository>
</repositories>
<dependencies>
</dependencies>
<build>
<defaultGoal>install</defaultGoal>
<directory>${basedir}/target</directory>
<finalName>${artifactId}-${version}</finalName>
<pluginManagement>
<plugins>
<plugin>
<groupId>org.apache.tomcat.maven</groupId>
<artifactId>tomcat7-maven-plugin</artifactId>
<version>2.2</version>
<configuration>
<port>80</port>
<path>/</path>
<systemProperties>
<JAVA_OPTS>-Xms256m -Xmx768m -XX:MaxPermSize=256m</JAVA_OPTS>
</systemProperties>
</configuration>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.1</version>
<configuration>
<source>1.8</source>
<target>1.8</target>
<encoding>UTF-8</encoding>
<maxmem>1024m</maxmem>
</configuration>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-war-plugin</artifactId>
<version>2.4</version>
<configuration>
<failOnMissingWebXml>false</failOnMissingWebXml>
</configuration>
</plugin>
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>hibernate3-maven-plugin</artifactId>
<version>3.0</version>
<configuration>
<components>
<component>
<name>hbm2ddl</name>
<implementation>annotationconfiguration</implementation>
</component>
</components>
</configuration>
<dependencies>
<dependency>
<groupId>org.hsqldb</groupId>
<artifactId>hsqldb</artifactId>
<version>2.5.0</version>
</dependency>
</dependencies>
</plugin>
<!-- EMMA -->
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>emma-maven-plugin</artifactId>
<version>1.0-alpha-3</version>
</plugin>
<!-- PMD manven plugin -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-pmd-plugin</artifactId>
<version>3.12.0</version>
</plugin>
</plugins>
</pluginManagement>
<plugins>
<!-- EMMA -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-surefire-plugin</artifactId>
<configuration>
<skipTests>true</skipTests>
<forkMode>once</forkMode>
<reportFormat>xml</reportFormat>
<excludes>
<exclude>**/Abstract*.java</exclude>
<exclude>**/*Suite.java</exclude>
</excludes>
<includes>
<include>**/*Test.java</include>
</includes>
</configuration>
</plugin>
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>emma-maven-plugin</artifactId>
<inherited>true</inherited>
</plugin>
<!-- JavaDoc -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-javadoc-plugin</artifactId>
<version>3.1.1</version>
</plugin>
</plugins>
</build>
<reporting>
<outputDirectory>${basedir}/target/site</outputDirectory>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-project-info-reports-plugin</artifactId>
<version>3.0.0</version>
<reportSets>
<reportSet>
<id>sunlink</id>
<reports>
<report>javadoc</report>
</reports>
<inherited>true</inherited>
<configuration>
<links>
<link>http://docs.oracle.com/javase/6/docs/api/</link>
</links>
</configuration>
</reportSet>
</reportSets>
</plugin>
<!-- JUnit Test Results & EMMA Coverage Reporting -->
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>emma-maven-plugin</artifactId>
<inherited>true</inherited>
</plugin>
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>surefire-report-maven-plugin</artifactId>
<inherited>true</inherited>
<reportSets>
<reportSet>
<reports>
<report>report-only</report>
</reports>
</reportSet>
</reportSets>
</plugin>
<!-- Generating JavaDoc Report -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-javadoc-plugin</artifactId>
<configuration>
<minmemory>128m</minmemory>
<maxmemory>512m</maxmemory>
<encoding>${encoding}</encoding>
<docencoding>${encoding}</docencoding>
<charset>${encoding}</charset>
</configuration>
</plugin>
<!-- Generating Java Source in HTML -->
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-jxr-plugin</artifactId>
<configuration>
<inputEncoding>${encoding}</inputEncoding>
<outputEncoding>${encoding}</outputEncoding>
<linkJavadoc>true</linkJavadoc>
<javadocDir>apidocs</javadocDir>
</configuration>
</plugin>
</plugins>
</reporting>
</project>parent부분에 부모로 받을 groupId와 artifactId를 매칭해줍니다.
<dependencies>부분은 비웁니다. 부모에서 상속받은 메이븐만 사용할 예정입니다.

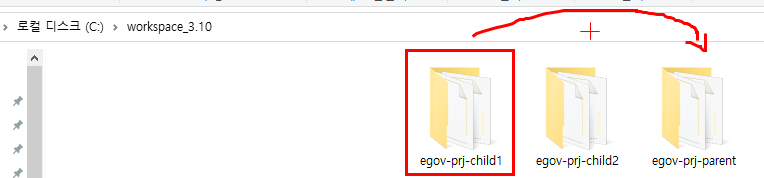

3. 해당 워크스페이스가 동작하고 있는 경로로가서 child1프로젝트를 parent프로젝트로 넣습니다.
나중에 child2도 생성해서 똑같이 복사하면 됩니다. 지금은 1만 복사합니다.
4. eclipse로 돌아와서 프로젝트를 새로고침 해보면, child1이 들어와있는걸 볼 수 있습니다.

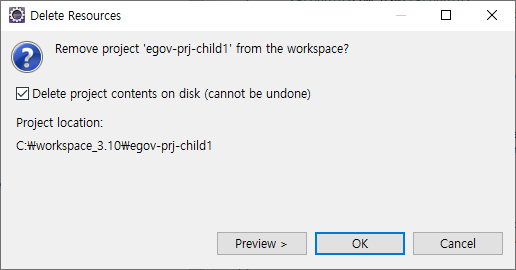

5. 필요없어진 egov-prj-child1은 지웁니다.

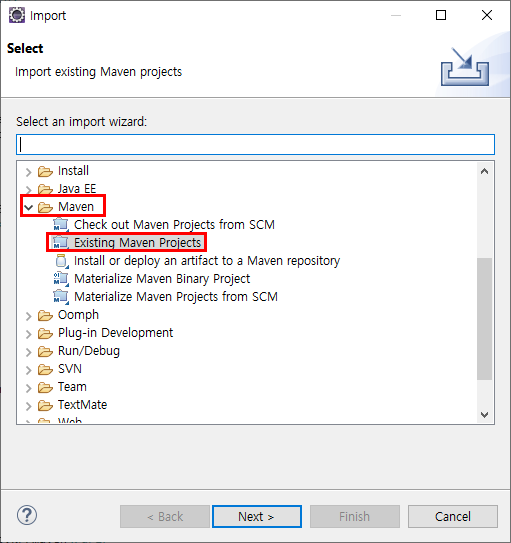

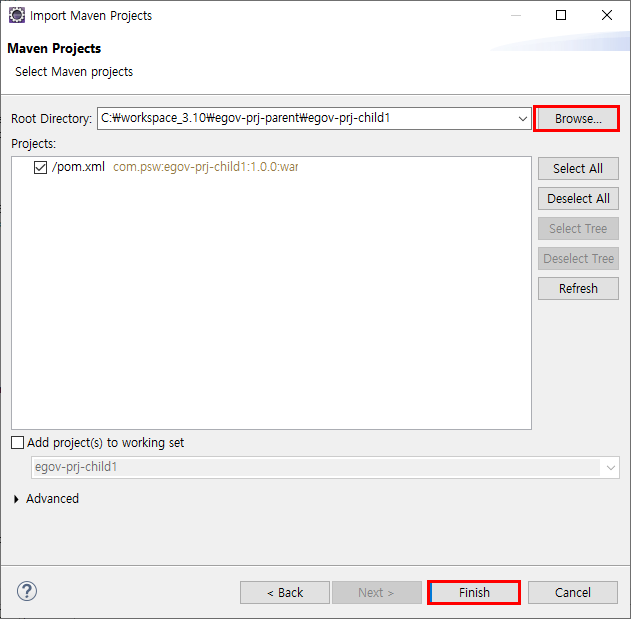

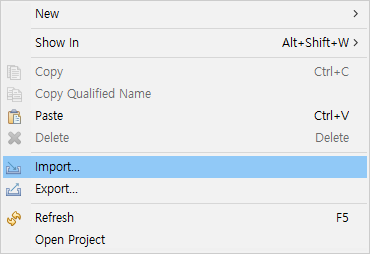

6. 이제 개발해야할 child1의 소스를 import하겠습니다.

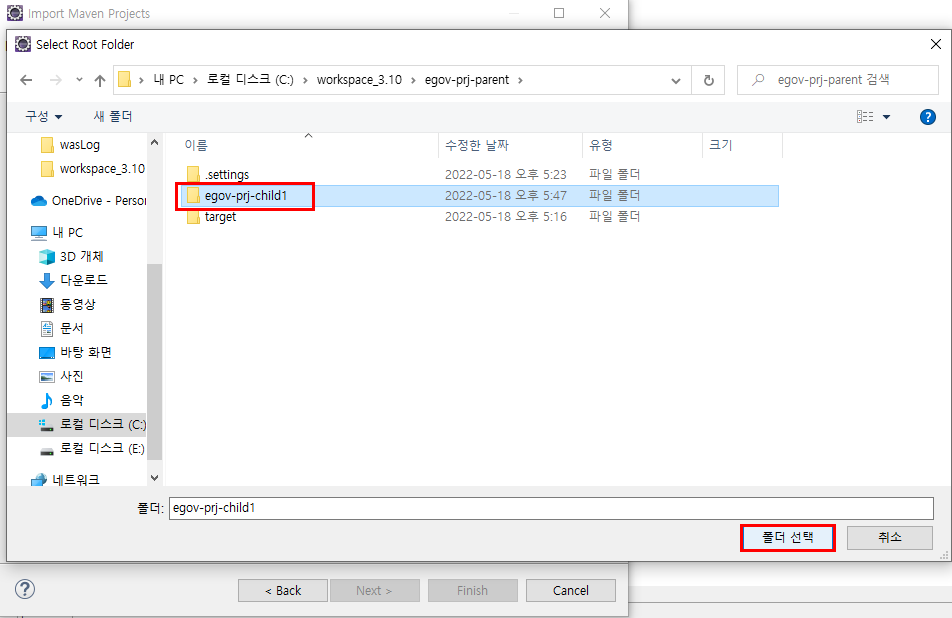

parent안에 있는 child1를 해야합니다.
그럼 정상적으로 import가 된다.

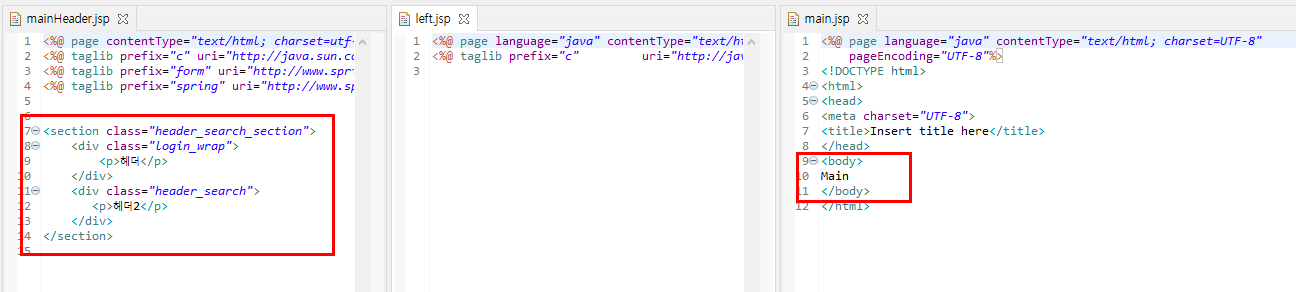

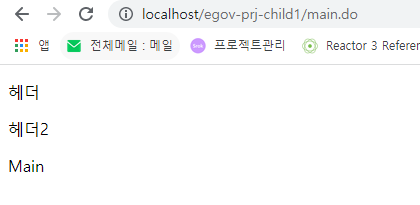

7. child1프로젝트에 타일즈 세팅후 톰캣 구동을 해보니 정상적으로 페이지가 뜬다. 😆
Child2 Project
child1 프로젝트와 마찬가지로 동일하게 설정하고 import후 개발을 진행하면 된다.
반응형
'WEB > Spring' 카테고리의 다른 글
| Spring - 트랜잭션(transaction) 설정하기 (1) | 2022.04.06 |
|---|---|
| Spring - 스프링 어떻게 동작할까? (0) | 2022.03.17 |
| XSS - Spring lucy servlet filter 적용하기 (0) | 2021.11.12 |
| XSS - lucy-xss-servlet-filter 적용 후기(네이버 루시 필터 적용) (0) | 2021.11.12 |
| Log4j2 설정하기(년/월/일자별로 로그 생성하기) (0) | 2021.08.05 |
